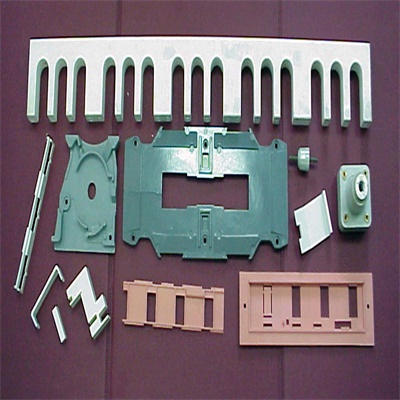

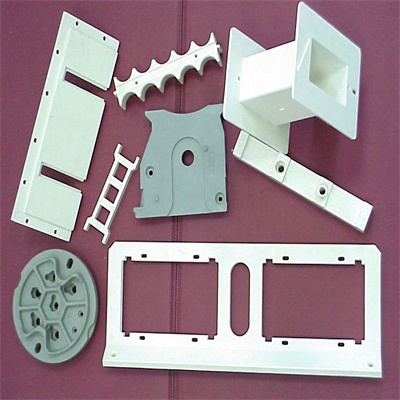

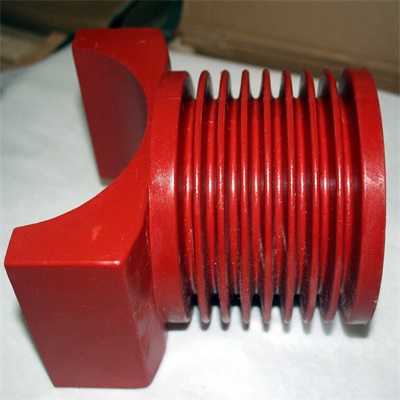

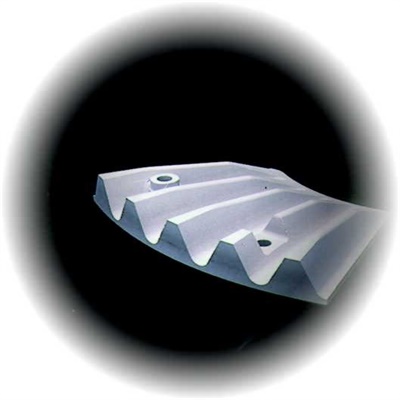

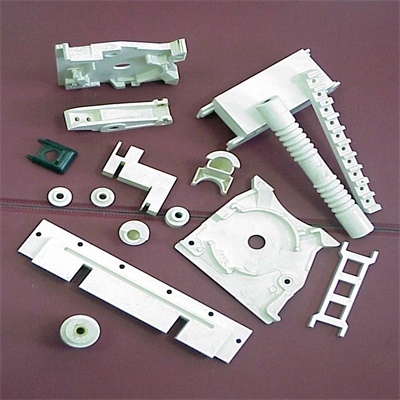

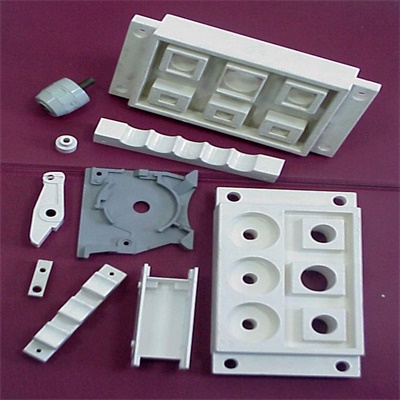

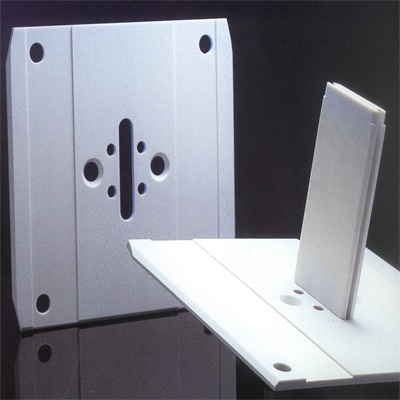

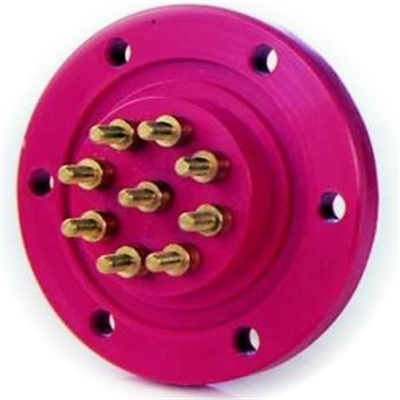

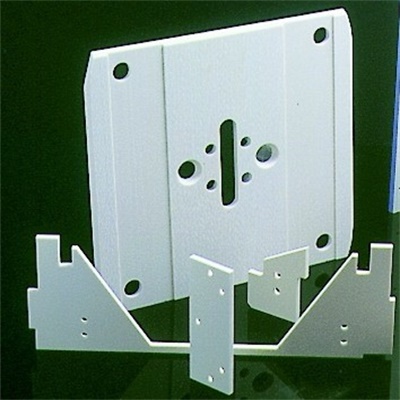

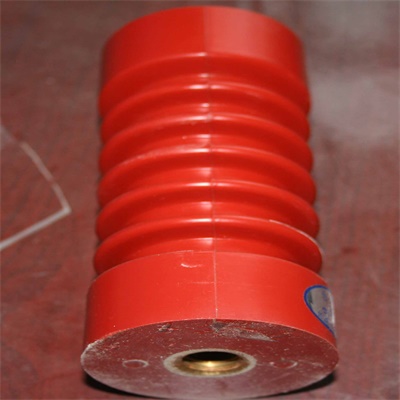

SMC，BMC and DMC Molded Parts
SMC (Sheet Molding Compound), BMC (Bulk Molding Compound) and DMC (Dough Molding Compound) are made of chemical sticky unsaturated polyester, fillings and glass fiber reinforced material. It can be solidify as requested products in moulds under heating and pressing. With the different & kinds of batch formula (dispensation) for the SMC, BMC and DMC raw material, kinds of SMC, DMC and BMC molded parts can be manufactured with the types of moulds following the customers’ requirement. The SMC, BMC or DMC molded parts that we manufacture have excellent electrical and mechanical prosperities. The material is arc resistant and flame retard, heat resistance is F grade. These parts are used as good electrical insulating structural products.
The SMC, BMC & DMC molded parts that we supply could be from 1.0g to 100kg, the molded part’s dimension can be reach 1000mm length; 1000mm width and 700mm height with different shape.
SMC Property Parameter and Application
|
序号 NO. |
名称 Name |
单位 Unit |
通用型 General(PC3300G) |
防水型 Water resistant (PC6610) |
低收缩型 Low-profile (PC3307-40) |
电气型 Electrical |
| 1 |
抗拉强度≥ Tensle strength≥ |
Mpa | 76 | 80 | 70 | 76 |
| 2 |
抗拉弹性模量≥ Tensile elastic modulus≥ |
Mpa | 10343 | 11301 | 8963 | 11721 |
| 3 |
弯曲强度≥ Flexural modulus≥ |
Mpa | 158 | 160 | 130 | 158 |
| 4 |
弯曲弹性模量≥ Flexural modulus |
Mpa | 10342 | 9456 | 7584 | 10342 |
| 5 |
压缩强度≥ Compressive strength |
Mpa | 158 | 158 | 150 | 150 |
| 6 |
缺口冲击强度≥ Notch lzod≥ |
ft.lbf/in | 11 | 13 | 12 | 12 |
| 7 |
水平燃烧 Level combustion |
11mm/min | 11mm/min | 10mm/min |
持续15 秒到第一标线 Last 15 seconds |
|
| 8 |
热变形温度≥ Heat distortion |
℃ | 240 | 240 | 240 | 240 |
| 9 |
密度 Density |
g/cm | 1.8-2.0 | 1.8-2.0 | 1.8-2.0 | 1.8-2.0 |
| 10 |
吸水率≤ Abserption rate≤ |
% | 0.2 | 0.15 | 0.2 | 0.2 |
| 11 |
巴柯尔硬度≥ Barcal hardness≥ |
50 | 45 | 50 | 50 | |
| 12 |
击穿强度≥ Disruptive strength≥ |
Mv/m | 18 | |||
| 13 |
耐电弧性≥ Disruptive strength≥ |
S | 150 | 150 | 150 | 180 |
| 14 |
阻燃性 Flame Resistance |
UL94 | / | / | / | V0 |
| 15 |
使用范围≥ Application |
座椅，楼梯扶手，摩托车阀座，挡泥板，仪表盘及包装箱等 Chair, stair armrest, motor cycles valve seat, dasher, gauge board, packing box and etc. |
洗手池，浴缸，地漏，高位水箱等 Washing basin, bath high water trunk |
车门，车身等汽车覆盖件 Auto door, auto body and etc. |
灯罩，各种电子一起外壳及电器零件 Lamp cover, electronical instruments enclosure and elements |
